36,000 BTU Dual Zone Ductless Mini Split AC - HYPER Heat Pump: 18000 x 2 /

Mini Ductless Split Air Conditioner 36000 BTU

36000 BTU Dual Zone Energy Star Mini Split AC
24 SEER Efficiency w/ Heat Pump Technology
With a 36000 BTU total Cool / Heat Capacity, the Thermocore T7HH23D-H236-18+18 Energy Star mini split air conditioner can cool or heat 2 separate zones of 18000 for a total coverage area of 1800 ft² (900 ft² + 900 ft²). Most Energy Efficient Dual-Zone series in the market! A 24 SEER coupled with Inverter technology provides the benefits of low operation temps (-22F) as well as maximum energy efficiency. Precharged with eneough refrigerant for 75ft of Lineset. Includes 2 x 15ft Install Kits.



Technical Data:

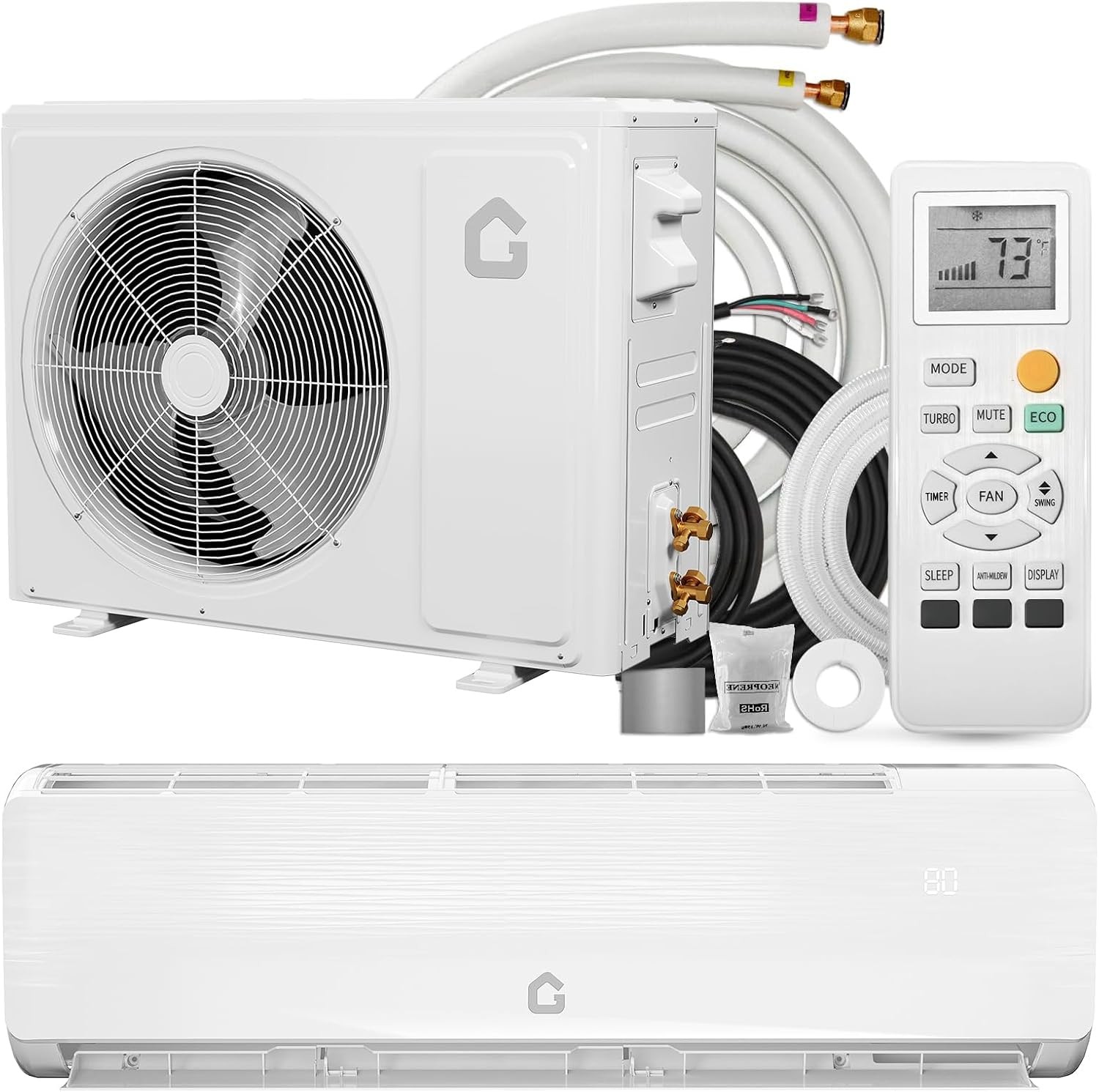

System Includes:

• 36,000 BTU INVERTER Cooling Capacity
• 36,000 BTU INVERTER Heat Pump Capacity
• 24 SEER - 11 HSPF - 11.50 EER / ENERGY STAR Certified*
• Pre-Charged with ECO-Friendly R454B

• Indoor Unit - Air Handler.
• Outdoor Unit - Condenser of 33,000+ BTU Rated
• Digital Multi-function LCD Remote Control.
• 15ft Copper Refrigeration Linesets.
• Product and Installation Manual.

** Extend 1 year parts - 5 year warranty package to 3 year part / 7 year warranty for $130 / year.

Top Line Features:

23 SEER - 11 HSPF - ENERGY STAR

Control via WIFI or Digital Remote

Accomodates Indoor Capacity up to 48000 BTU

Pre-Charged w/ R454B for 75ft of Lineset

Certified by AHRI, ETL UL and C-UL

Two Air Handlers for Multi-Zone Placement

Follow-Me Function tracks Remote Location

Operates in Ambient Temps down to -22F!!

Restart IC: Settings restored Following Outage

Self-Diagnosis System Monitors Operations

Capacity 18000 BTU Air Flow (Hi/M/Lo) 710/560/440 cfm Power Supply 230 V / 60 Hz / 1Ph Noise Output (Hi/M/Lo) 47/40/31 dBA Liquid / Gas 1/4" x 1/2" Weight 35.5 lbs Dimensions (W x D x H) 42.5" × 8.9" × 13.2" inches


Model Number T7HH24D-H236-C Compressor Brand TOSHIBA - GMCC Capacity 27000-33000 BTU Maximum AHU Capacity 48000 BTU Air Flow 2148 CFM Power Supply 230 V / 60 Hz / 1Ph Fuse Size 30A SEER 24 EER 12 HSPF4 10 Sound Level 61 dBA Operating Temp Range -22 F to 122 F (cool and heat) Refrigerant R454B / 121oz Charge Liquid / Gas 1/4" x 3/8" (3) + 1/4" x 1/2" (1) Max Lineset Length (1 zone) 114 ft Max Lineset Length (all zones) 263 ft Pre-Charge Length 100 ft (25 ft x 4) Weight 168.4 lbs Dimensions (W x D x H) 37.24 × 16.14 × 32 inches

Install Kit Contents:

• 15 Feet Flared Copper Tubing x 2
• 15 Feet Pipe Insulation x 2
• 15 Electrical Wire x 2
• Drain Pipe (connected to Indoor)
• Pre-Filter 'Particle' Filtration Media x 2
• Wall Bracket for Indoor Unit x 2
• Brass Adaptors for Alternate lineset sizes
• Installation and User Manuals

** Extend included 15 foot lineset to 25-30-40-50-65 feet. Just $4.50 / foot**


WHAT IS DC INVERTER?

DC Inverter Air Conditioners are the ultimate cooling and heating technology of the HVAC field. They are called "DC inverter" because the alternative current (AC) is converted to Direct Current (DC) then, direct current inverted back to Alternative current with desired frequency. As known, the current supplied through the wall outlet has fixed frequency which is 60 Hertz. Different frequencies supplied to the compressor will result different running speeds of the compressor. YMGI Inverter control systems use Pulse Amplitude Modulation (PAM) that is the most advanced and energy efficient method of inverting the current. DC Inverter air conditioners bear special compressors that their speed could be changed by increasing or decreasing the frequency of the supplied power. Therefore, unlike conventional split Air Contioners/Heat Pumps which cycle between on and off repeatedly, the DC Inverter control system will monitor the room temperature and adjust the compressor speed automatically.

Conventional compressors turn on and off to maintain the room temperature at desired level. This will result compressor to draw tremendous energy each time it starts up. This will also reduce the life-span of the compressor and other components that are turning on and off. Once a conventional system is running, it runs at its maximum speed, consuming the maximum amount of energy in order to produce the maximum of cooling or heating to maintain the desired temperature. The system will then cycle between on and off in an effort to maintain this temperature. When a DC Inverter compressor initially starts up, it runs with a higher speed to bring the room temperature to desired level rapidly. Once the set temperature is reached, it slows down and adjust its capacity to counter the heat loss or heat gain of the building. By this way it will maintain a constant temperature.



BASIC OVERVIEW: The indoor unit is hung like a picture frame approximately 6 - 8 feet above the floor usually on an exterior wall. A 2-3 inch hole must be made behind the indoor unit in the exterior wall to run the refrigerant copper tubing, electrical wires to the outside unit. Electrical Cables are NOT INCLUDED. The condensing unit comes pre-charged with R454B however, procedures such as conducting leak tests etc. are still important steps in ensuring proper functioning of a split AC. *Although installation may seem easy to some, certain tools and experience is necessary to complete setup of a mini splitIt is highly advised a certified HVAC technician complete installation to be eligible for warranty. See warranty details below >




*5 Year Compressor - 1 Year on all other Parts* Registration card will be sent with unit, this card should be completed by an HVAC technician (installer). Installation of a mini split must be completed by a licensed HVAC (Heating, ventilating, & air conditioning) company to ensure any issues encountered in the future are not due to improper installation / workmanship. Even though mini split setup is below the expertise requirements of central AC systems, these are not "plug-n-play" units that can be properly installed without certain tools any prior HVAC - electrical knowledge. The installation includes electrical, gas, and refrigerant connections and generally regulated by a multiple sets of laws, codes and guidelines, at the federal, state and local levels. The failure to properly install HVAC equipment can raise personal safety and performance concerns. Warranty service - troubleshooting is provided through the contractor / installer and will be upheld as long as policies are observed. Once a non-defective unit is installed by a HVAC company, chances of anything going wrong are very slim and almost all contractors will guarantee there workmanship and provide future service free of charge (installation warranty). If it was determined that the unit is not functioning due to a defect and needs to be replaced, the part will be sent free of charge up to 1 year from date of purchase or 5 years for the compressor. If you receive a damaged or defective product, a replacement unit will be sent out Free of cost. Damaged / Defective product will be picked up and brand new exchange will be shipped out.


SHIPS TO TO BOTH UNITED STATES AND CANADIAN LOCATIONS!

Our Thermocore systems ship via RL Carriers or similar LTL freight service out of Warren, Michigan and are palletized onto a single skid. Transit time is usually between 4 to 6 business days from payment receipt depending on where you are geographically located. Please provide a contact phone# upon checkout (to be used for delivery purposes only). SOMEBODY MUST BE ON SITE TO ACCEPT / SIGN FOR Order. Failure to provide valid contact# will delay order. System comes with Free shipping - this includes delivery to any location within the Continental United States. We will ship to Canadian locations but we need to quote separately - please contact our offices. Additional freight for Canadian registries is usually around $150. (import and duties may apply).
